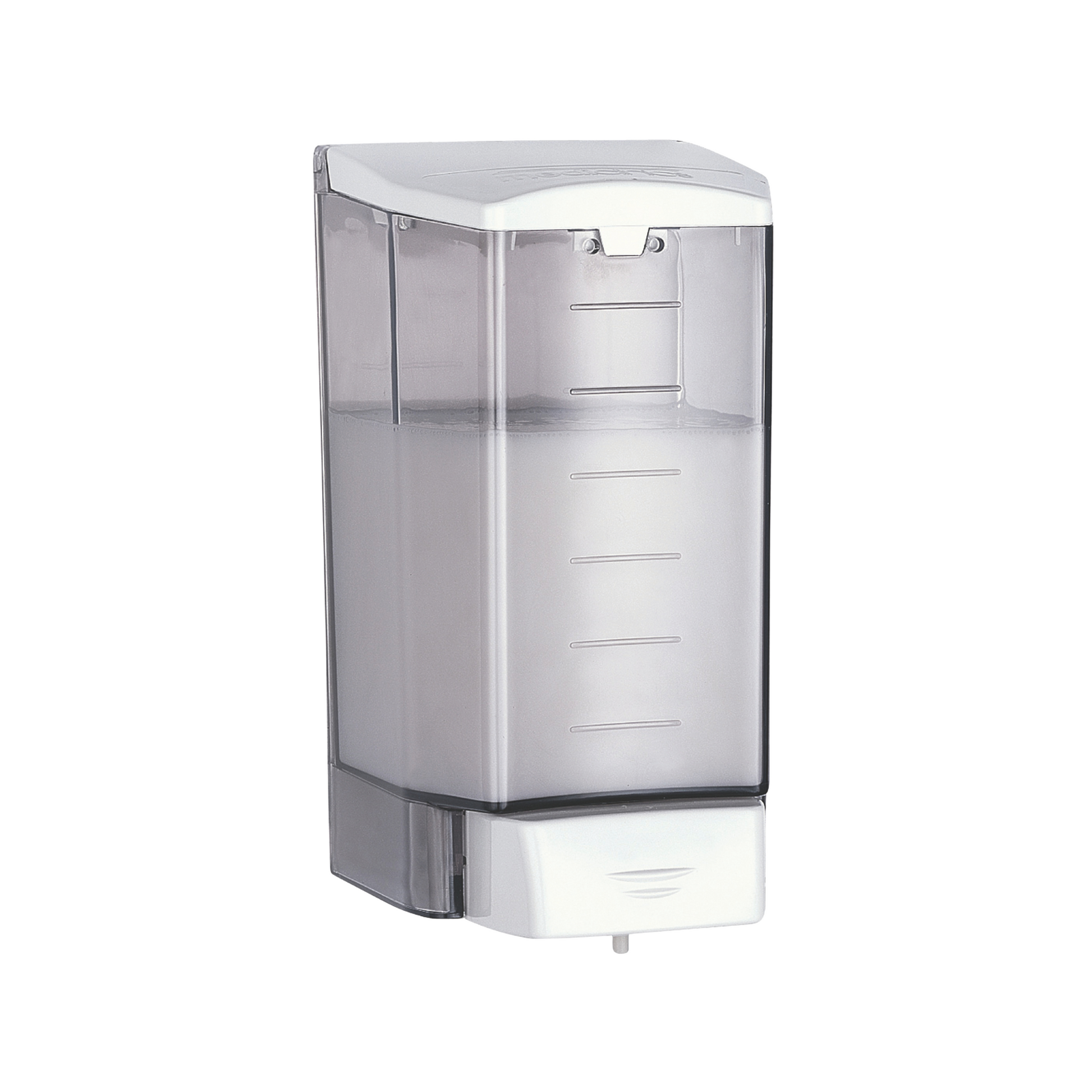

Mediclinics Washroom DJ0010F Soap Dispenser

Item Code: DJ0010F

Key Features:

* Liquid soap dispenser, wall mounted.
* Push-button operated.
* Robust.
* Suitable for high traffic facilities.
* Model suitable for public use.
* It normally goes along with a warm air hand dryer.
* Colour: Clear

Specifications:

* Thermoplastic SAN container, 3 mm thick, fum colour.
* It is mounted on the wall by means of 4 wood screws with their corresponding 5 mm wall plugs.
* It can be filled with commercially marketed all purpose liquid and lotion hand soaps and synthetic detergents.
*  White ABS top filling lid. To refill, the lid is opened using a standard mediclinics key supplied.
*  White ABS push-button.
* Anti-dripping and anti-corrosion valve.
* Design based on a polyamide piston with 2 elastomeric toroidal gaskets, silicone blocking pivot and stainless steel ball to ensure tightness.
* Stainless steel AISI 302 springs.
* Suitable soaps: Hand soaps, with neutral PH, not containing chlorine.

* Dimensions - 204mm H x 107mm W x 108mm D
* Push-button - ABS
* Capacity - 1,1 L
* Quantity dispensed per pulsation - 1- 1,2 ml
* Operable force - 26 N
* Weight (empty dispenser) - 0,3 Kg
* Recommended installation height from the self - 15-20 cm

Operation

Press push-button manually to dispense a measured amount of liquid soap.
Valve is operable with one hand, without tight grasping, pinching, or twisting of the wrist
