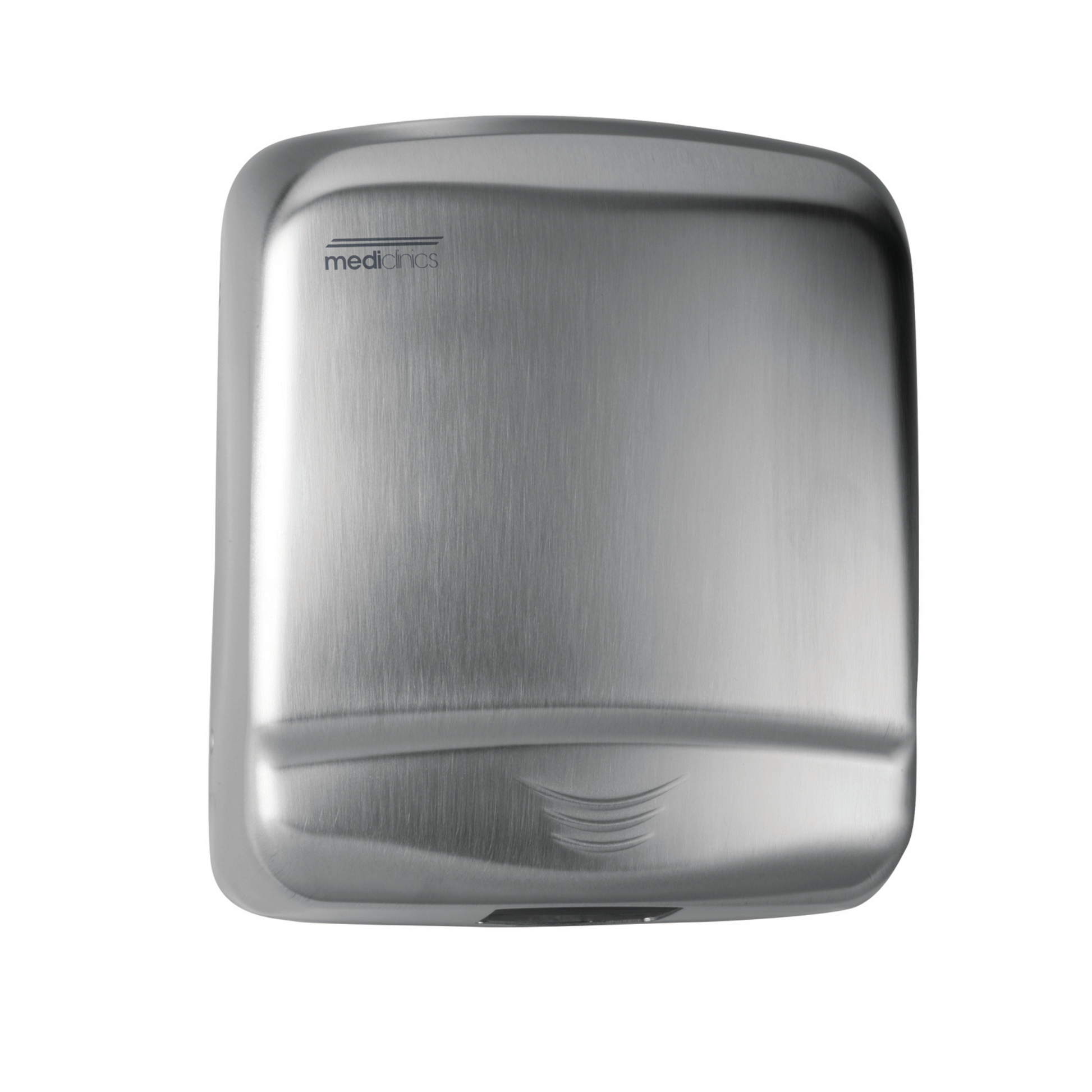

Mediclinics Optima M99ACS Hand Dryer Automatic Compact

Item number - M99ACS

Key Features:

* Warm air hand dryer
* Sensor operated
* Suitable for medium facilities
* Compact appliance
* Highest durability in its class

IDEAL FOR:

Medium traffic settings,especially areas where noise is an issue e.g. doctors rooms,small offices, restaurants,theatres etc.

Components and Materials:

* Stainless steel AISI 304 one-piece high quality and high impact cover, 1.5 mm thick, satin finish
* Cover fixed to the base by means of 4 Allen head screws.
* Engineering thermoplastic ABS UL 94-V0 base and fan scroll, with 4 8 mm holes for wall mounting.
* Induction motor, 2.800 rpm, maintenance-free and high durability, incorporates a safety
thermostat and a self-resetable thermal cut-off at 130 degC.
* PP UL94-V0 with single inlet fan wheel.
* Waved wire NiCr 40 heating element that incorporates a self-resetable thermal cut-off at 70 degC.
* Two distances (15/25 cm) IR electronic detection sensor.
* Zamak air outlet grill.

Technical Specifications:

* Voltage - 220-240 V
* Frequency - 50/60 Hz
* Electrical isolation - Class II
* Dimensions - 302mm H x 260mm W x 150mm D
* Weight - 4,25 Kg
* Effective airflow - 240 m3/h 4.000 l/min
* Nominal airflow - 280 m3/h / 4670 l/min
* Air velocity - 65 Km/h
* Total power - 1640 W
* Motor power - 140 W
* Heating element power - 1500 W
* Consumption - 7 A
* RPM - 2800
* Air temperature(10 cm distance / 21 degC) - 52 degC
* Noise level (at 2 m) - 60 d (Tested in a sound proof room does not include environmental factors)

COMES AS HARD WIRED HOWEVER CAN REQUEST PLUG UPON ORDER

Operation:

* Place the hands under the air outlet grill. The dryer will start automatically, and go on with no interruption as long as the hands are kept in the detection range of the sensor. The appliance will stop 2 seconds after the hands are removed from the airflow.
