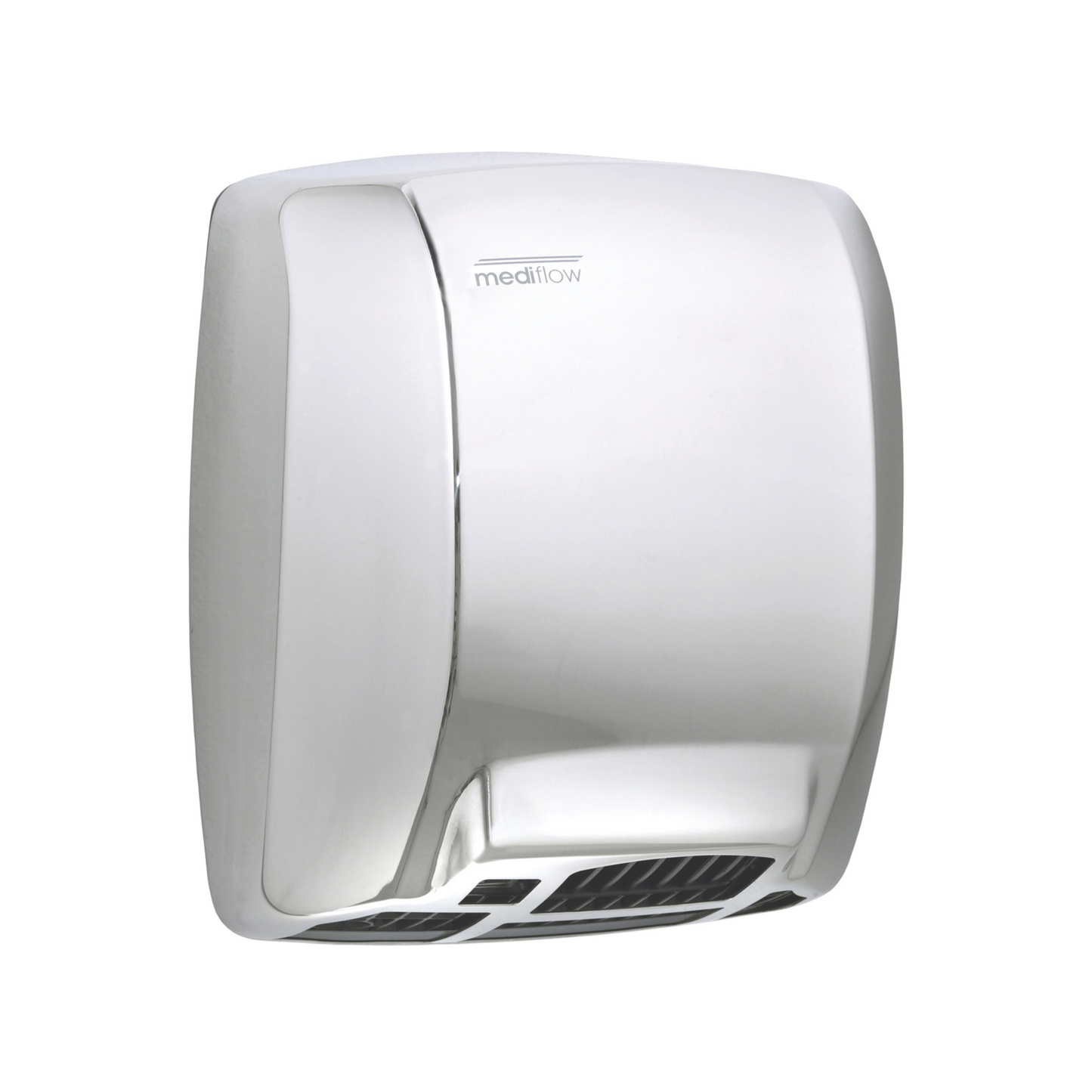

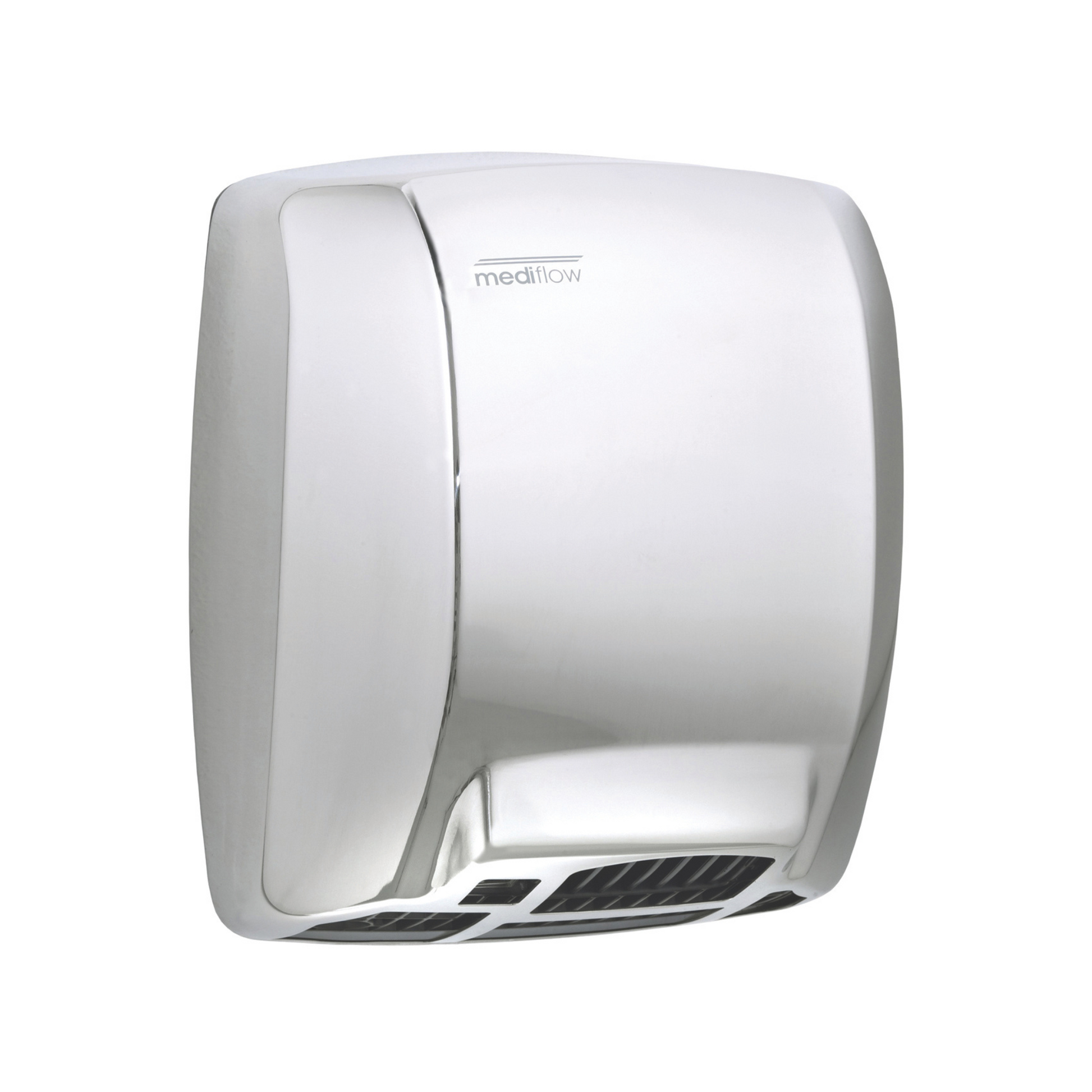

Mediclinics Mediflow M02AC Bright Stainless steel Hand Dryer

Item Code: M02AC

Suitable for disabled washrooms (with recess kit, sold separately)

IDEAL FOR:
High traffic settings,especially areas where noise is an issue e.g.hotels, airports, clubs,
offices, cinemas, etc.

Key Features:
* Warm air hand dryer.
* Sensor operated by hand approximation.
* Airflow temperature electronic regulation.
* Maximum power and airflow.
* Maximum robustness and vandal-proof.
* Suitable for very high traffic facilities.
* Recessed kit that conforms to ADAAG projection also available.
* It normally goes along with a soap dispenser.

COMPONENTS AND MATERIALS
* Bright polished stainless steel body
* Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special Mediflow wrench.
* Fire resistant plastic UL 94-V0 base and fan scroll, with 4 8 mm holes for wall mounting.
* Universal brush motor, 4500 rpm, F class, incorporates a self-resetting safety thermal cut-off at 120degC.
* Aluminium centrifugal double symmetrical inlet fan wheel.
* Fe, Al & Cr taped wire heating element mounted on a mica frame that incorporates a self-resetting safety thermal cut-off at 110 degC. Automatic disconnection 1/2 second before motor stops.
* Logic Dry technology: Automatic regulation of air temperature based on ambient temperature.
* Selective detection of fixed targets and automatic disconnection after 120 seconds of continuous use.
* Fully adjustable (5 - 20 cm) IR electronic detection sensor.
* Adjustment is by means of a potentiometer.
* Sensors come with a polycarbonate viewing window.
* Four silent blocks to eliminate vibrations.

TECHNICAL SPECIFICATIONS
* Voltage 220-240 V
* Frequency 50/60 Hz
* Electrical isolation  Class II
* Dimensions 272 W x 325H x 164D mm
* Weight 4.25 kg
* Effective airflow 450 m3/h (7.500 l/min)
* Nominal airflow 540 m3/h (9000 l/min)
* Air velocity 95 km/h
* Total power 250- 2750 W
* Motor power 250 W
* Heating element power 0- 2500 W
* Consumption 1.1 - 12 A RPM 4500
* Air temperature (10 cm distance / 21 degC) 49 degC
* Drying time* 29 sec
* Noise level (at 2 m) 65 dB (Tested in a sound proof room does not include environmental factors)
* Protection level IP23
* Finishes: Bright SS

*Note: Drying time may vary with ambient conditions
