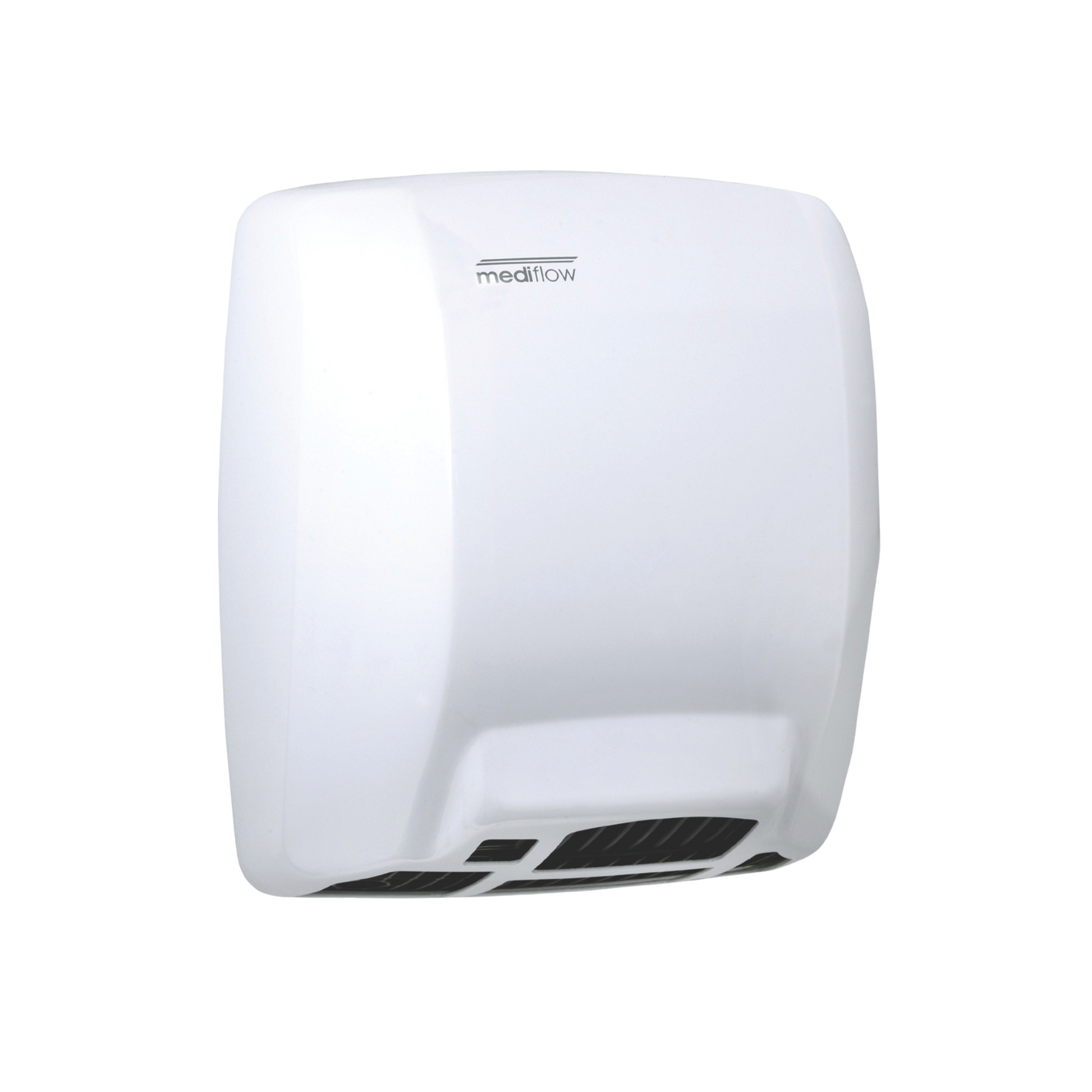

Mediclinics Mediflow M02A Hand Dryer Sensor Warm Air

Item Code: M02A

Key Features:

• Warm air hand dryer.
• Sensor operated by hand approximation.
•  Airflow temperature electronic regulation.
• Maximum power and airflow.
• Maximum robustness and vandal-proof.
• Suitable for very high traffic facilities
•  Recessed kit that conforms to ADAAG projection also available (sold separately).
• It normally goes along with a soap dispenser.


Technical Specifications:

* Voltage - 220-240 V
* Frequency - 50/60 Hz
* Electrical isolation - Class II
* Dimensions - 320x 272x 164 mm
* Weight - 4,85 Kg
* Effective airflow - 450 m3/h / 7.500 l/min
* Nominal airflow - 540 m3/h / 9000 l/min
* Air velocity - 95 Km/h
* Total power - 250- 2750 W
* Motor power - 250 W
* Heating element power - 0- 2500 W
* Consumption - 1,1-12 A
* RPM - 4500
* Air temperature(10 cm distance / 21 degC) - 49 degC
* Noise level (at 2 m) - 65 dB (Tested in a sound proof room does not include environmental factors)
* Protection level - IP23

Operation
Place the hands under the air outflow valve. The dryer will start automatically, and go on with no interruption as long as the hands are
kept in the detection range of the sensor. The appliance will stop 2 seconds after the hands are removed from the airflow. As a safety
measure, the appliance will stop after 120 seconds.
