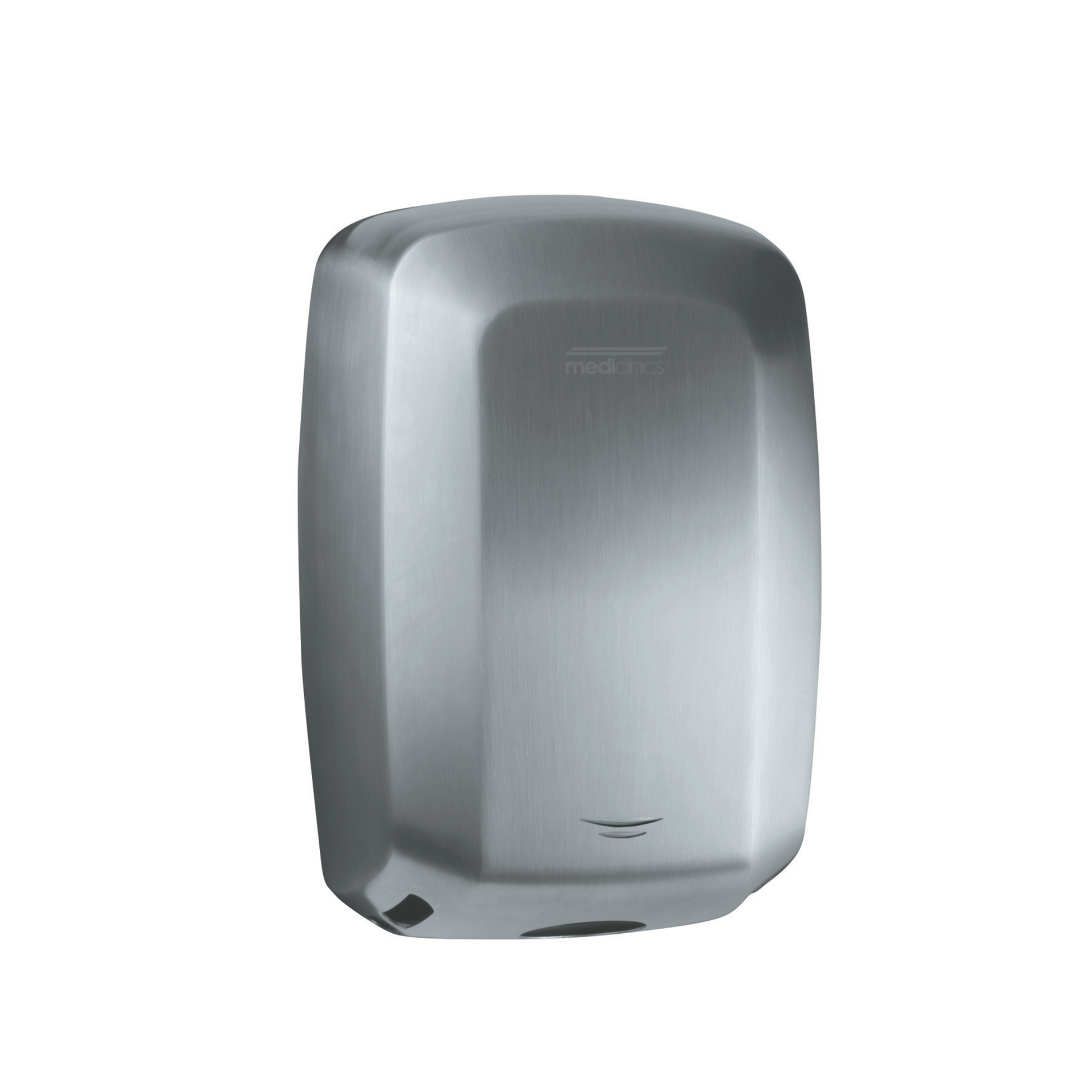

Mediclinics Machflow M09ACS Hand Dryer High Speed Eco

Item Code: M09ACS

* Dries hands in 8 to 10 seconds
* 80% more efficient than conventional dryers
* Produces half the noise of leading competitors
* Soft start motor for longer life
* Excellent vandal proofing
* Traffic: High
* Class: High speed

IDEAL FOR:
* Hotels, airports, clubs, universities, sports stadiums, shopping malls, offices, cinemas, sports centres etc.
* Installations optimising environmental performance

Technical data for all models:
* All Mediclinics Machflow models use the same components, the differences being casing material and finish. Note that the Mediclinics Machflow has an adjustable fan speed, from 19,000 to 30,000 rpm, which is reflected in some of the figures being displayed as a range.

COMPONENTS AND MATERIALS
* Stainless steel AISI 304 once-piece cover, bright finish, 1.5 mm thick.
* Cover fixed to the base by means of 2 screws.
* ABS base for wall mounting. It includes silent-blocks to damp mechanical vibrations.
* Vacuum universal brush motor, F class. RPM may be adjusted manually by means of apotentiometer.
* Automatic disconnection after 60 seconds of continuous use.
* Fully adjustable (5-25 cm) IR electronic detection sensor by means of a potentiometer.

TECHNICAL SPECIFICATIONS
* Voltage 220-240 V
* Frequency 50/60 Hz
* Electrical isolation Class I
* Dimensions (W x H x D, in mm) 330 x 213 x 170
* Weight 4.7 kg
* Nominal airflow  187 m3/h (3,120 l/min)
* Air velocity  325 Km/h
* Total power (Motor only) 420 - 1150 W
* Consumption  3.3 - 4.7 A
* RPM 19,000 - 30,000
* Air temperature (10 cm distance / 21 degC)  40 degC
* Noise level (at 2 m)  68-75 dB (Tested in a sound proof room does not include environmental factors)

Operation
Place the hands under the air outflow valve. The dryer will start automatically, and go on with no interruption as long as the hands are
kept in the detection range of the sensor. The appliance will stop 2 seconds after the hands are removed from the airflow.
