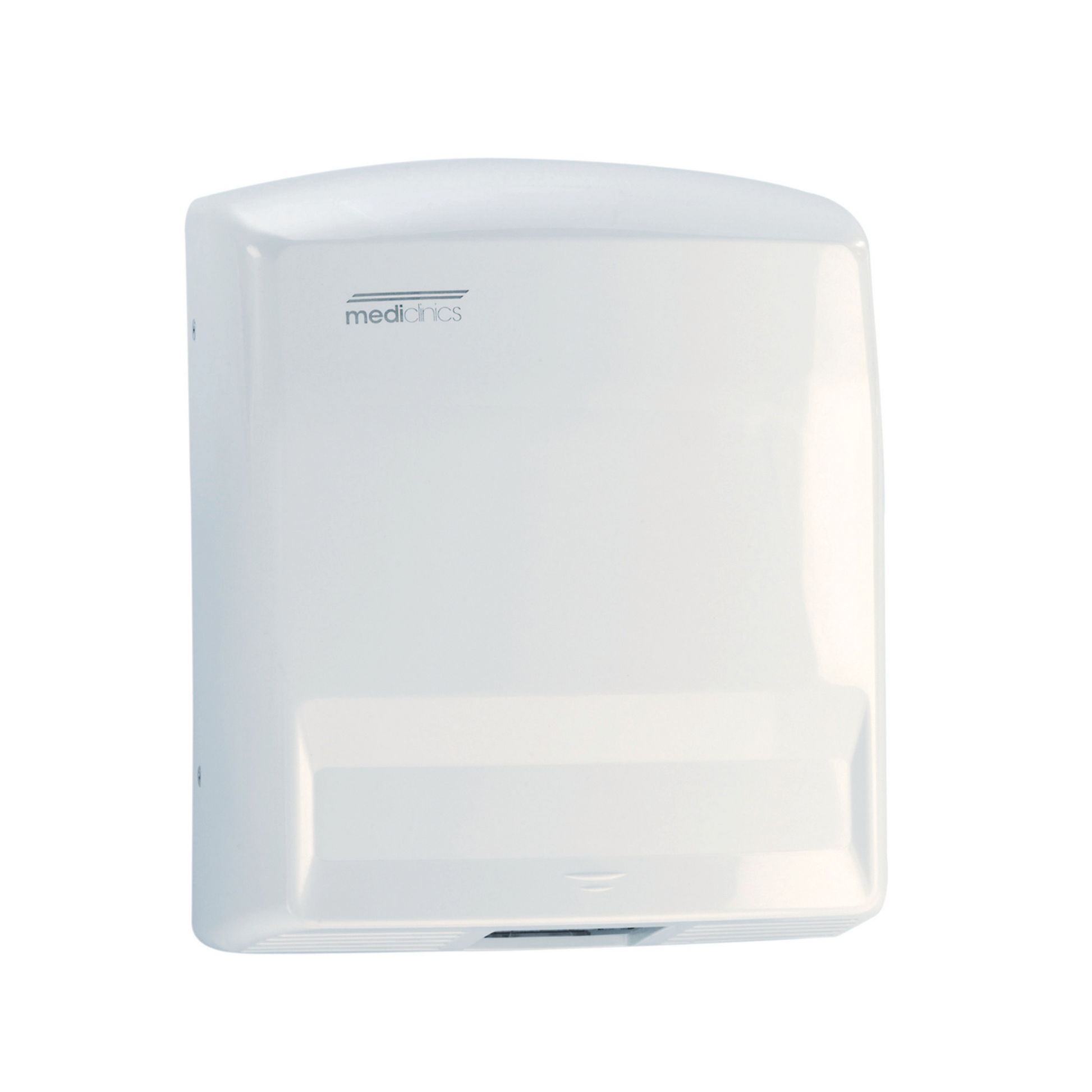

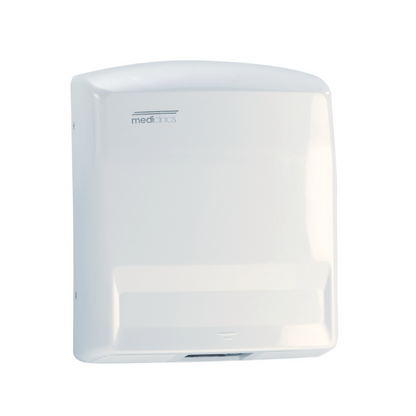

Mediclinics Junior Plus M88A Hand Dryer Auto Sensor

Item Code: M88A PLUS

General description

* Warm air hand dryer.
* Sensor operated.
* Suitable for medium and high traffic facilities.
* Compact appliance.
* Highest durability in its class.
* It normally goes along with a soap dispenser.

IDEAL FOR:

Medium traffic settings,especially areas where noise is an issue e.g. doctors rooms,small offices, restaurants,theatres etc.

Components and Materials:

* White ABS thermoplastic one-piece cover, 3 mm thick. Cover fixed to the base by means of 4 Allen head screws.
* Engineering thermoplastic ABS UL 94-V0 base and fan scroll, with 4 6 mm holes for wall mounting.
* Induction motor, 2.800 rpm, maintenance-free and high durability, incorporates a safety thermal cut-off.
* PP UL94-V0 with single inlet fan wheel.
* Waved wire NiCr heating element that incorporates a self resettable thermal cut-off.
* Two distances (15/25 cm) IR electronic detection sensor.
*  Zamak air outlet grill.
*Ready to be hard-wired. Plug on request (Plug not attached to hand dryer)

Technical Specifications

* Voltage - 220-240 V
* Frequency - 50/ 60 Hz
* Electrical isolation - clase II
* Dimensions - 302mm H x 253mm W x 149mm D
* Weight - 3 Kg
* Effective airflow - 240 m3/h/4000 l/min
* Nominal airflow - 280 m3/h /4670 l/min
* Air velocity - 65 Km/h
* Total power - 1640 W
* Motor power - 140 W
* Heating element power - 1500 W
* Consumption - 7 A
* RPM - 2800
* Air temperature(10 cm distance / 21degC) - 52 degC
* Noise level (at 2 m) - 60 dB (Tested in a sound proof room does not include environmental factors)
* Protection level - IP21
* Warranty 2 yrs labour - 5 yrs parts

Operation

Place the hands under the air outlet grill.
The dryer will start automatically, and go on with no interruption as long as the hands are kept in the detection range of the sensor.
The appliance will stop 2 seconds after the hands are removed from the airflow.
