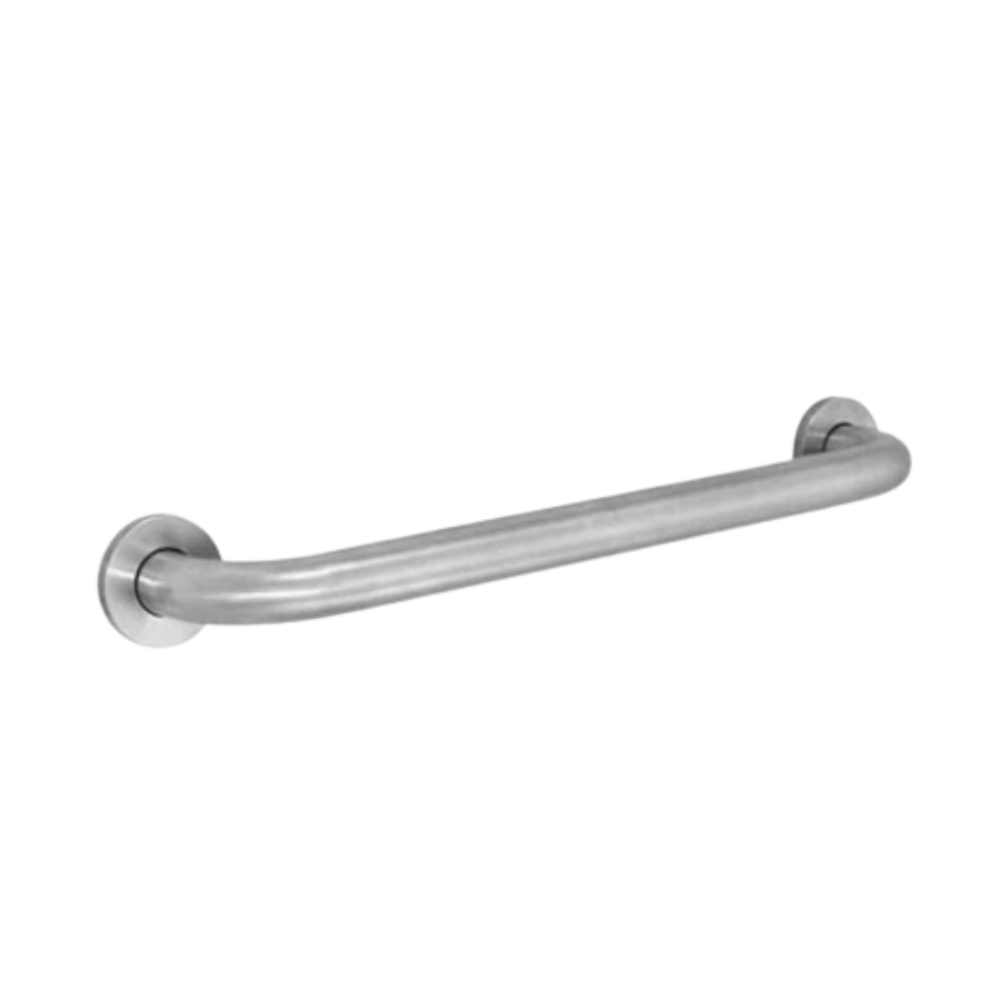

Bradley Stylishly Assisted Living SAL-001 Grab Rail Straight

Item Numbers: SAL-4-001- (various sizes available)

All dimensions are centre-to-centre

Key Features of the Bradley SAL-001 Grab Rail Straight:

* This smartly designed range provides a 'seal' of protection around the mounting plate to eliminate germ and bacteria growth
* Grab rail shall be fabricated of type 304 satin finish stainless steel with concealing mounting flanges
* Black washer shall be fabricated of rubber with an additional black silicone disc
* When properly mounted, all Bradley heavy duty grab rail system meet or exceed the requirements of Australian Standard AS1428.1
* The SAL series grab rails have been tested to withstand 225kgs

Installation:

* Secure to wall where adequate in-wall backing exists.
* Place black silicone seal on the wall with the grab rail on top, making sure the flange covers the seal
* Use the oval markers on the flange as indicators to ensure the grab rail is level
* Fully drill in remaining screws (6), slide escutcheon over flange and screw into place

Specifications:

* Surface mounted
* 32mm diameter bars
* Concealed fixings
* Polished stainless steel finish
* Type 304 stainless steel, 22 gauge
* One-piece construction
* Rubber black washer
* Mounting plates are 70mm in diameter
