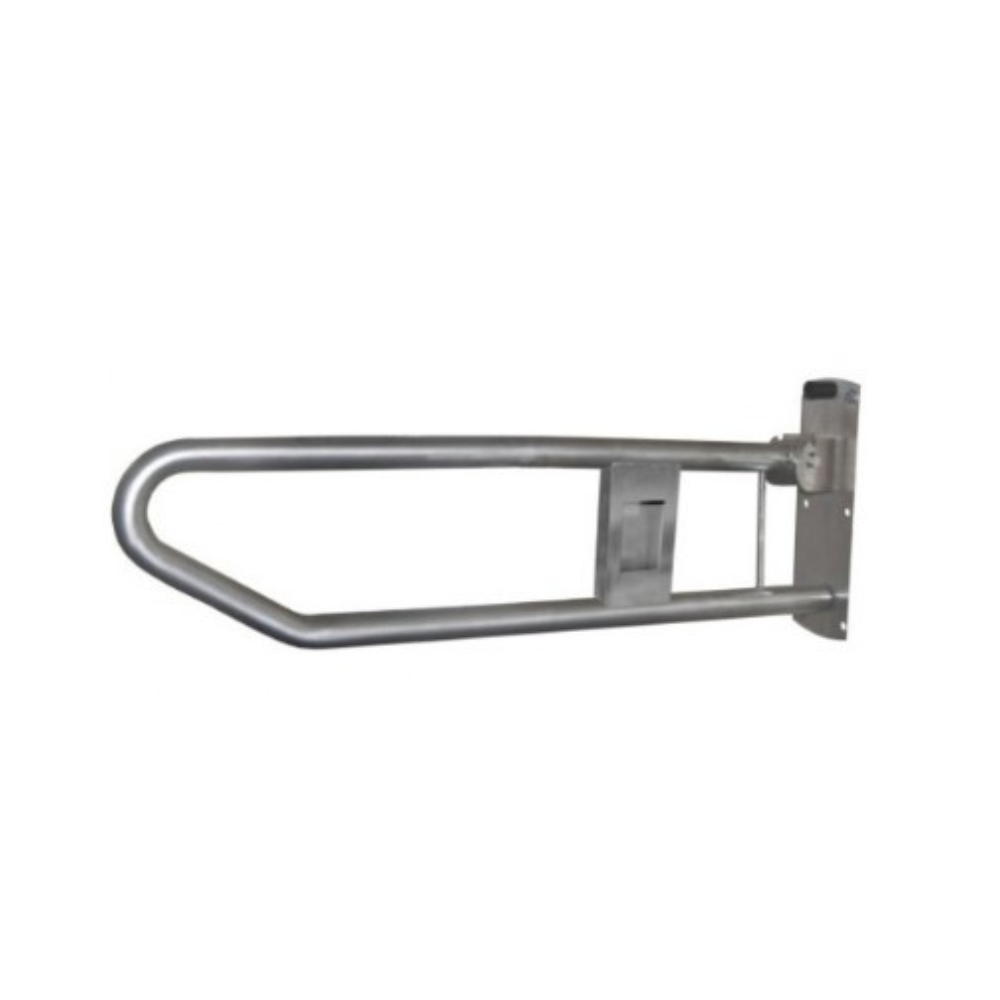

Bradley 832 Drop Down Rail with Nurse Call

Item Numbers:

* 832-101-NC-LH: Left Hand
* 832-101-NC-RH: Right Hand

Key Features of the Bradley 832-101-NC Nurse Call Drop Down Rail:

* Perfect for aged care situations
* Grab rail shall be fabricated of type 304 stainless steel with concealed mounting flanges
* Bent ends of tubing pass through the flanges and are heliarc welded into a single structural unit for maximum strength.
* Bradley's surface mounted rail goes through a mandrel bending process maintains a uniform 32mm rail diameter
* A seamless construction with exposed surfaces in architectural satin finish to suit your bathroom accessories and hardware
* Suitable for domestic and commercial applications

Strength:

* When properly mounted, all Bradley heavy duty grab bar systems meet or exceed the requirements of Australian Standard AS1428.1(2,3), of ANSI Standard A117.1, the ADA and ABA Accessibility Guidelines for Buildings and
Facilities (ADAAG) and the Uniform Federal Accessibility Standard (UFAS).

Specifications:

* Backplate dimensions: 100mm W x 300mm H
* Unit projection: 810mm
* Material: 304 stainless steel
* Finish: Satin stainless steel
* 32mm diameter rail
* Unit does not lock in up position

Installation:

* Secure to wall where adequate in-wall backing exists.
* Use bar as template to locate mounting holes.
* Drill holes and set anchors as appropriate.
* Mount grab rail and secure mounting screws.

IMPORTANT NOTE - Please be aware that there may be an extended lead time for this product, please feel free to contact our Customer Care team with any queries
