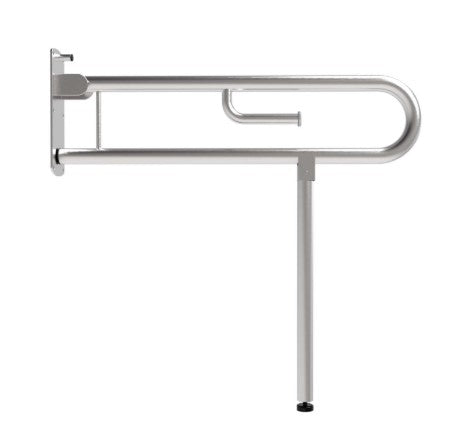

Bradley 812-102-AT Bariatric Drop Down Grab Rail with Leg and Toilet Roll Holder

Item Number:  812-102-AT-51

Key Features of the Bradley Bariatric 812-102-AT Drop Down Grab Rail with Drop Down Leg:

* Grab rail shall be fabricated of type 304 stainless steel with concealed mounting flanges
* Bent ends of tubing pass through the flanges and are heliarc welded into a single structural unit for maximum strength.
* Bradley's surface mounted rail goes through a mandrel bending process maintains uniform 38mm rail diameter
* A seamless construction with exposed surfaces in an architectural satin finish to suit your bathroom accessories and hardware
* When fitted to a concrete slab/wall achieves a 450kg weight load
* When fitted to a 50mm timber stud in wall support achieves a 409kg weight load
* Suitable for bariatric applications
* Designed with a support leg 38mm and clip holder
* Locking pin locks rail in the ‘UP’ position
* When properly mounted, all Bradley heavy duty grab rail systems meet or exceed the requirements of Australian Standard AS 1428.1

Specifications:

* Back plate dimensions: 100mm W x 300mm H
* Unit projection: 850mm
* Material: 304 stainless steel
* Finish: Satin stainless steel
* Load capacity: Depending on fittings can hold 409-450kg
* 38mm diameter rail
* Locks in up position

Installation:

* Secure to wall where adequate in-wall backing exists.
* Use rail as template to locate mounting holes.
* Drill holes and set anchors as appropriate.
* Mount grab rail and secure mounting screws. (Screws not provided.)
* Drop down rails must be installed / fitted to a solid wall or firm surface and installed by qualified trades people.
* Brickwork, blockwork, concrete or 50mm timber stud will be sufficient
