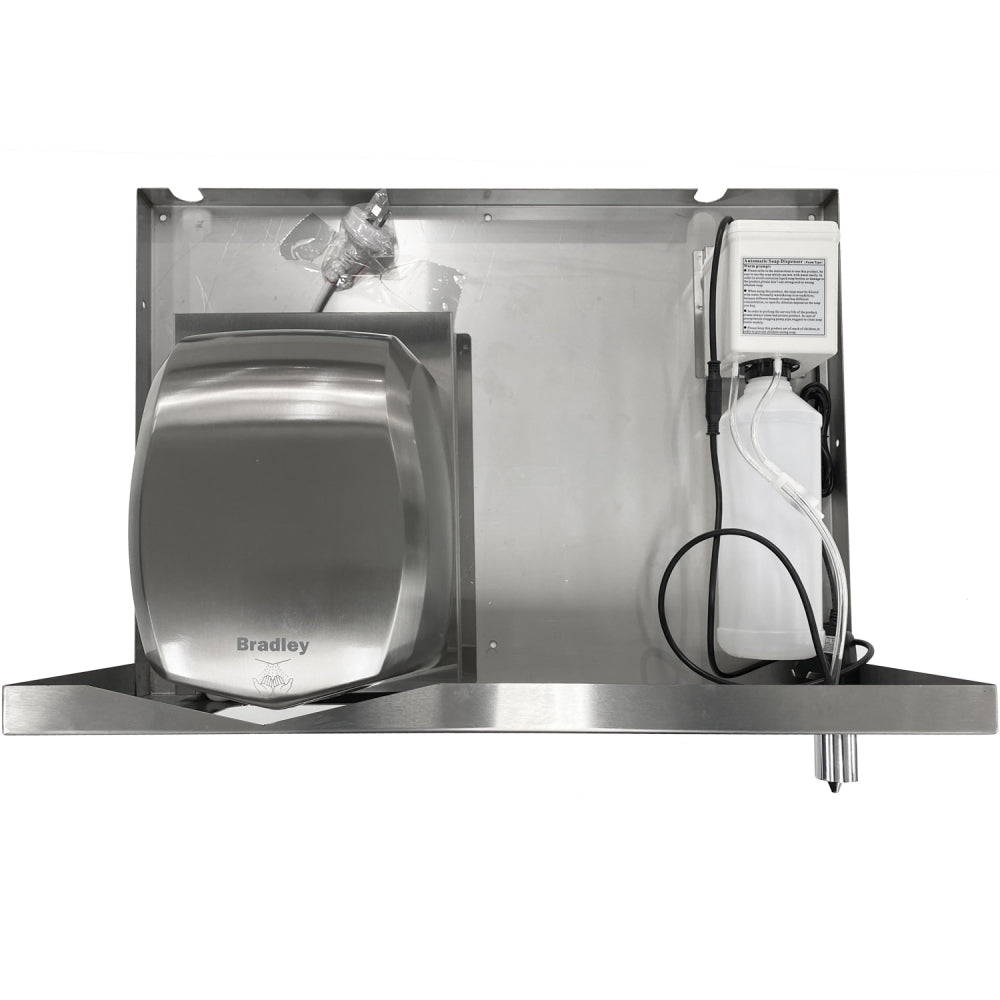

Bradley 726-FSH Behind Mirror Foam Soap Dispenser and Hand Dryer

Item Number:  726-FSH

Key Features:

* An electronic wall mounted modular system with hand dryer  and liquid foam soap dispenser for integration behind the mirror
* Designed for behind-mirror or cabinet installation for a minimalist and modern bathroom design
* Includes frame, Bradley fast air hand dryer and Bradley soap dispenser
* Hand dryer is eco model 220-312 with fast dry time
* Foam soap dispenser capacity is refillable 1 litre or 5 litre option  and is a sealed bottle replacement cartridge style
* GPO outlet required for power leads running through the top of the unit
* Stainless steel frame
* Overall Dimensions: 600mm W x 430mm H x 223mm D or customised options available just contact our team!
* When using the recommended Bradley AQF6011 foam soap (sold separately) you will get on average 1000 shots of shot each refill!

Operation:

* HAND DRYER:

Activation by infra-red (touch free) sensor. The intelligent sensor alters the temperature of the output airflow to suit the installation environment. This is an adjustable feature to be amended by a certified electrician. Round nozzle for concentrated air flow and quick drying process. Automatically adjusts heating power for energy conservation.

* FOAM SOAP DISPENSER:

Touch free electronic soap dispenser for behind mirror and cabinetry installations. Activated by infrared sensor and closes automatically when hands removed. Remote control option for soap quantity selection, soap refill, ability to temporarily disable sensor and restore factory settings. Please see additional warranty for exclusions.

Installation:

* Installation height: 150mm
* Power source: AC 240 V
* Soap viscosity: 100-3800 cPs
* Prime dispenser prior to use.
* Mark location of fixing holes and fix unit to the wall using suitable screws.
* Hand dryer requires 10 amp power supply.

Specifications:

* Fascia and Back Box: Fabricated of satin finish stainless steel
* One Litre soap bottles includes bottle support
* We recommend using the Bradley AQF6011 Aqua Foam Soap for optimum operation and performance
* Hand dryer motor: brushless high efficiency with low power consumption and outer case features vandal resistant key

Hand Dryer Electrical Specifications:

* Electrical Supply: 240V / 50Hz / 3.6A
* Rated power: 800W
* Air Volume 75m3/h
* Air Velocity: 85m/sec
* Noise Level: >70db
* Nett Weight: 3.3kg
* Protection Category: IP 22
