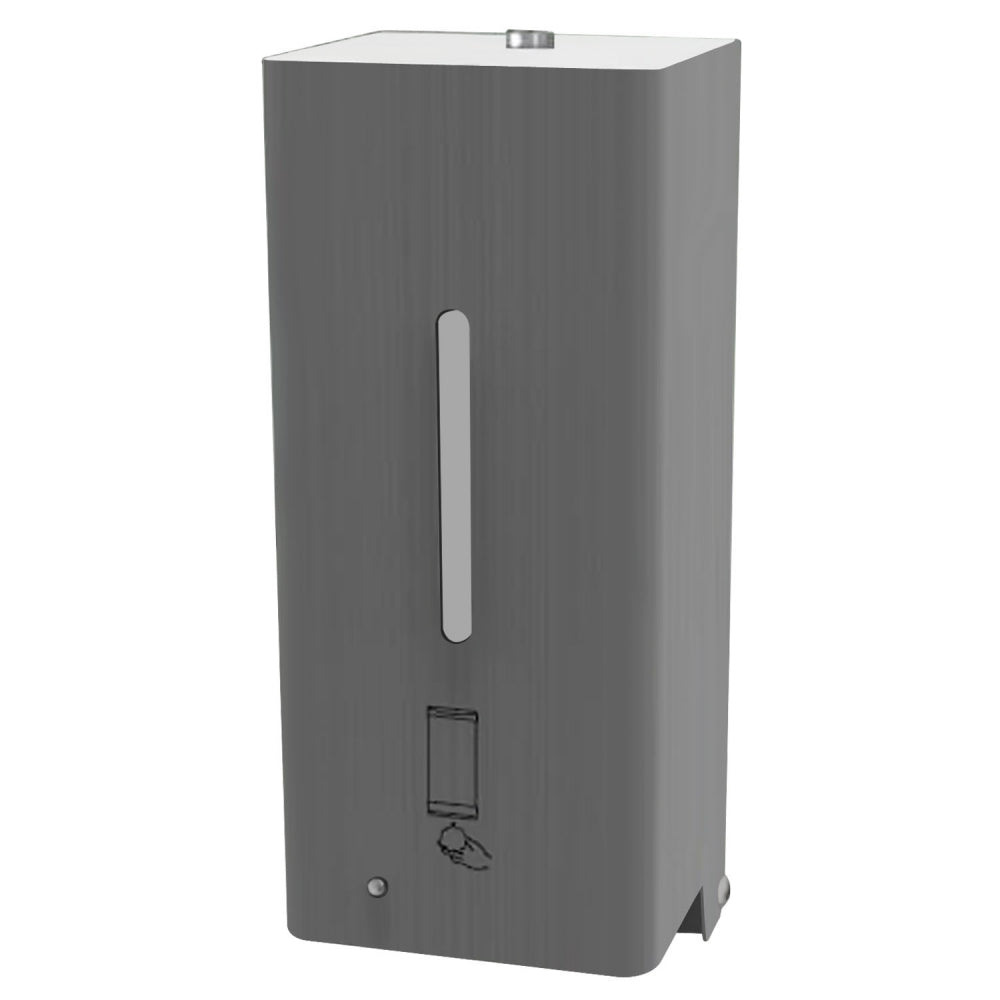

Bradley 6870 Sensor Foam Soap Dispenser

Product code: 6870

Key Features:

* A compact and stylish sensor operated foam soap dispenser
* Surface mounted
* Features a soap viewing window so you can easily check when the unit needs to be refilled
* Refills with bulk foam liquid soap - for optimal performance we recommend the use of the Bradley AQF6011 Aqua Foam Soap
* Key lockable
* AC Adapter to plug into wall, but has optional battery operation (4 x AA batteries)
* Equipped with hinged cover and completely concealed mounting plate.
* Vandal resistant filler hole cover and sight gauge
* Corrosion resistant foam soap valve

Product Data:

* Overall Dimensions: 108mm W x 268mm H x 107mm D
* Finish: Satin Stainless Steel
* Capacity: 800mL of bulk foam soap  - we highly recommend you use the Bradley AQF6011 Aqua Foam for optimum performance
* Foam Quantity: 0.7-0.8 CC (per use)
* Pump life: 50,000 drops/cycles

Operation:

* Place hands under soap spout and hold to dispense foam soap.
* Sight gauge indicates refill time.
* Refill by unlocking lock with key (supplied), swinging open dispenser body.
* Remove cap to refill internal soap tank. Surface-mounted automatic foam soap
* Casing in stainless steel has LED= light (flashes 3 times: stand by for operation. Flash blue continuously: battery low). * Casing closed: Power on, Casing opened: Power off

Installation:

* Verify all rough-in dimensions prior to installation.
* Secure separate mounting bracket with mounting screws (included) at holes provided.
* Unlock the cover, open and remove tank.
* Secure unit to wall by installing the mounting screws.
* Fill tank with bulk foam soap. Close and lock the cover.

* Please note there is a minimum requirement of 300mm distance between the sensor and the counter top or basin surface. Nothing is allowed within 300mm of nozzle or sensor assembly.
