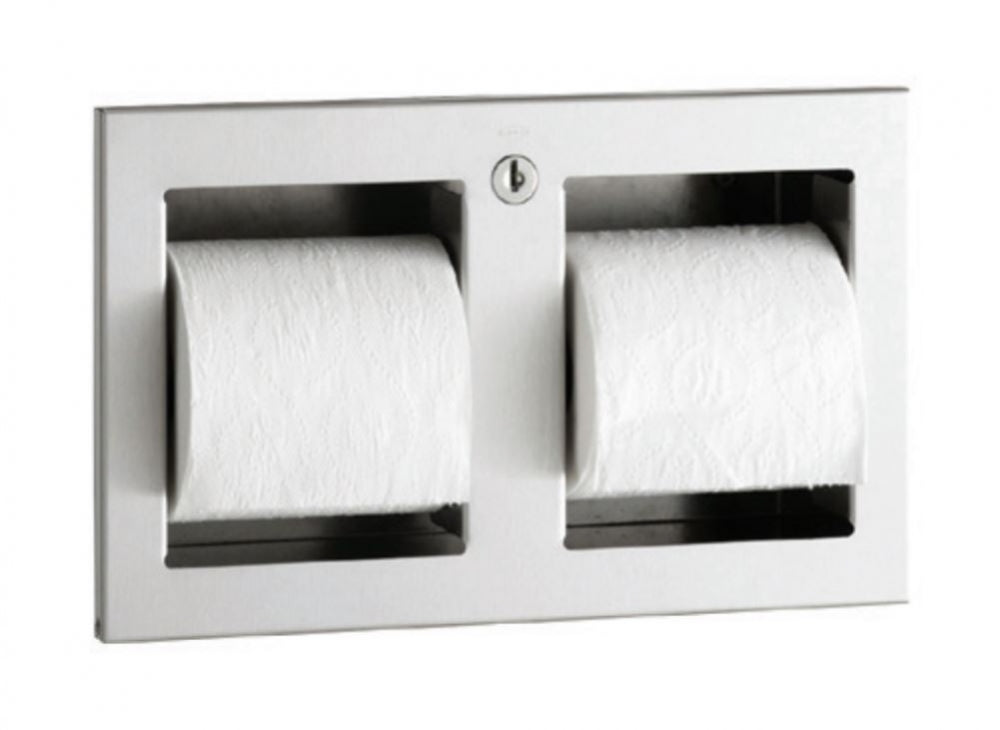

BOBRICK Trimline B35883 Double Toilet Roll Holder

Item Number:  B35883

Key Features:

* Double Toilet Roll Holder
* Satin Finish Stainless Steel
* Recessed
* Overall Dimensions: 345mm W x 215mm H x 115mm D
* Equipped with a tumbler lock keyed

Operations:

* Unit holds two standard-core toilet tissue rolls up to 130mm diameter (1500 sheets)
* To service toilet tissue dispenser, unlock door with key provided and slide spindle out on any direction.

Installation:

* Provide framed rough wall opening 318mm W x 187mm H x 102mm min D
* Minimum recessed depth required from finish face of wall is 102mm
* Allow clearance for construction features that may protrude into rough wall opening from opposite wall.
* Coordinate with mechanical engineer to avoid pipes, vents, and conduits in wall
* Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with four sheet-metal screws (not furnished)
