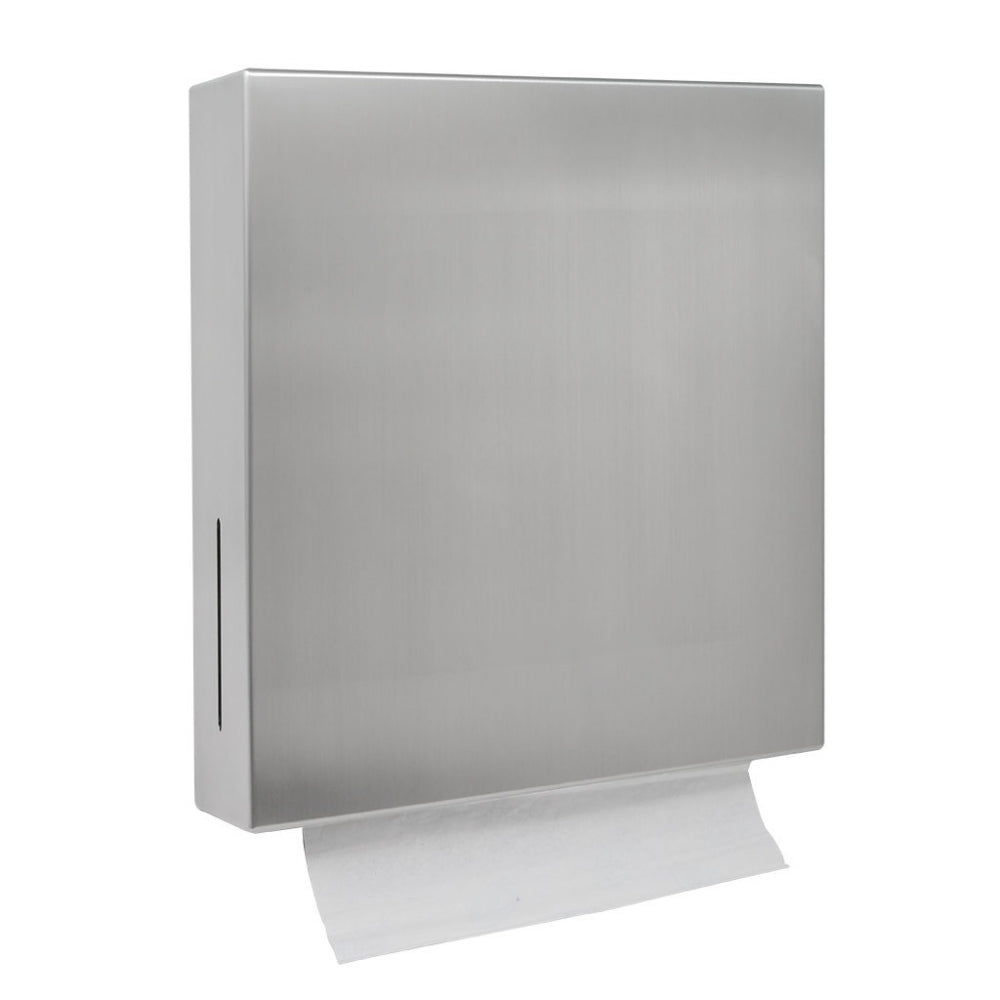

BOBRICK Fino B9262 Paper Towel Dispenser

Item Number:  B9262

Key Features:

* Unit is manufactured of type 304 stainless steel
* All heliarc welded construction with well-defined edges and corners
* Cabinet is connected to backplate via a hinge at the unit's rear bottom, which prevents paper towels from falling out when opening
* Door-limiter allows cabinet to open down to a horizontal position, which eases refill of paper towels and prevents cabinet from harming the wall when opening
* Includes an integrated TowelMate
* Backplate has recessed key lock mounting holes to prevent mounting screw heads from snapping towels
* Unit shall be capable of dispensing 400 C-fold or 525 multifold paper towels 64–97mm deep without adjustment or use of adapters

Installation:

* Mount unit on wall with four sheet-metal mounting screws (not furnished) at points indicated by an S
* For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws
* For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 3mm toggle bolts or expansion bolts

Operation:

* Unit dispenses C-fold or multifold paper towels 64–97mm deep without adjustment or use of adapters.
* After unlocking with key provided, cabinet swings down for loading paper towels into cabinet
* Load paper onto the TowelMate within the cabinet, and then pull one sheet of paper towel over the TowelMate towel rod and out to conceal rod and start dispense
* Slots in sides of cabinet indicate refill time
* After unlocking with key provided, cabinet swings down for loading paper towels into cabinet
