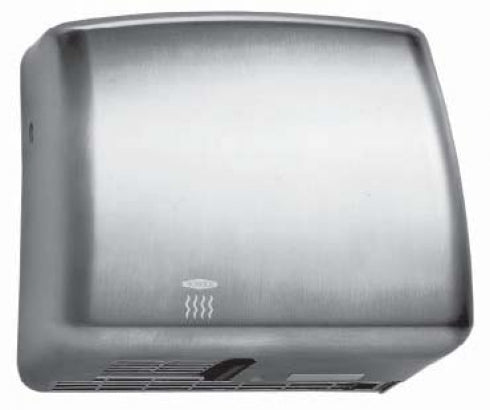

BOBRICK ELAN B715E Surface Mounted Hand Dryer

Item Number - B715E

Materials -

* Cover: Type-304 stainless steel with satin finish. Cover is secured to mounting base with three flat-head stainless steel screws.
* Mounting Base and Fan Housing: Plastic air-inlet grille fits into bottom of mounting base. Plastic air-outlet grille is secured between fan housing and mounting base.
* Motor: Maintenance-free capacitor run, external rotor motor with sealed ball bearings at both ends of drive shaft. Equipped with an automatic thermal-overload switch.
* Fan: Dynamically balanced 5-15/64 (133mm) diameter rotor centrifugal fan with multiple metallic vanes.
* Heating Element: Coiled nickel-chrome heating element is protected by an automatic thermal-overload switch and thermal fuse.
* Electronic Control: Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor.

Recommended Mounting Heights -

* Children's Washrooms, ages 3-4 36'' (915mm)
* Children's Washrooms, ages 5-8 40'' (1015mm)
* Children's Washrooms, ages 9-12 44'' (1120mm)
* Universal Design 48'' (1219mm)

Product Data -

* Overall Dimensions - 295mm x 140mm x 280mm
* Finish - Satin Stainless Steel
* 115V AC, 15 Amp, 1725 Watts, 60 Hz, Single Phase
