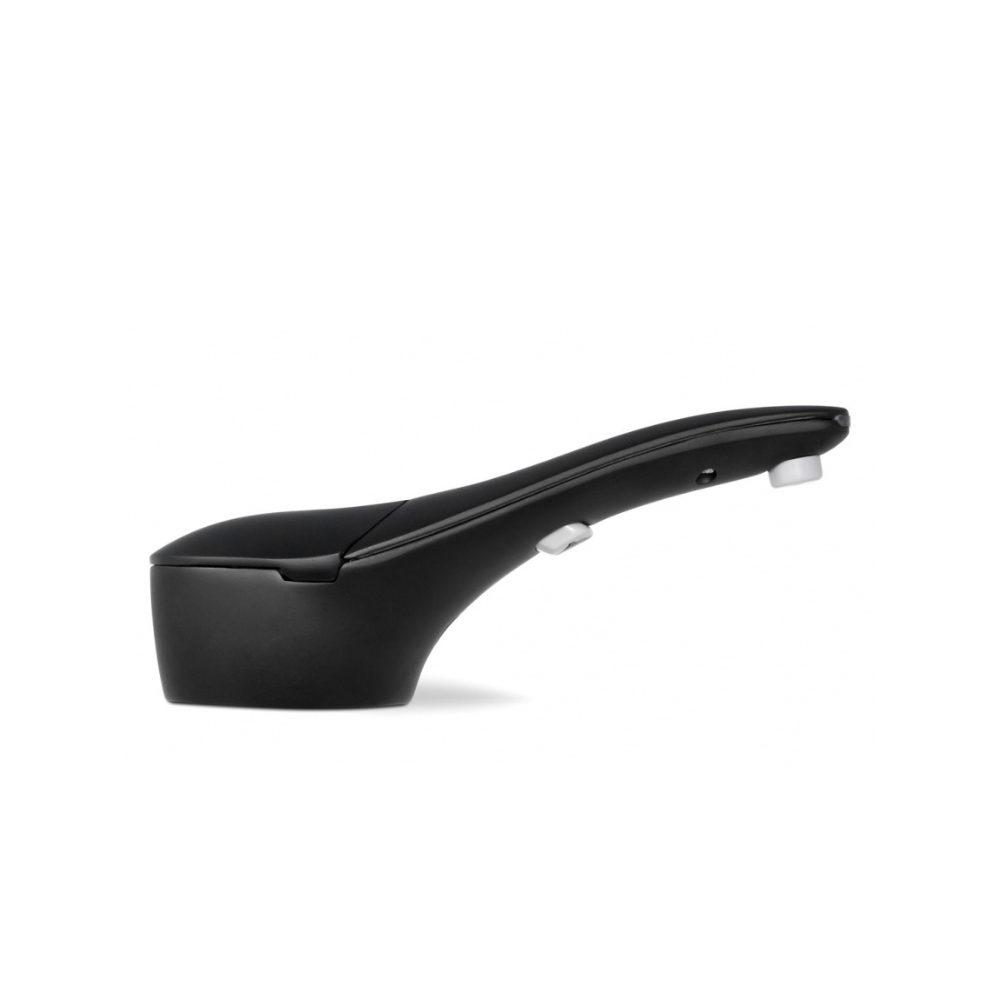

BOBRICK Designer B852 Bench Soap Dispenser Liquid Auto

Item Number:  B852

Key Features:

* Automatic, “top fill”, “touch-free” Designer Series Soap dispenser with die-cast zinc body construction
* Uses universal bulk liquid soaps for significant cost-in-use savings
* Dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget
* Automatic faucet available in a matching finish
* Adjustable time-out duration’s, line purging, adaptable sensor range, LED flow-rate options.
* Bobrick Designer Soap Dispenser dispenses adjustable amount 0.4 to 3ml of all-purpose bulk liquid hand soaps
* Do not use iodine based or alcohol based soaps or sanitizers
* Stem is integrated with spout and shall be Delrin plastic and accommodate up to 50mm thick counter tops
* Unit shall be equipped with oversized funnel shape opening, covered by a 180 degree rotatable lid with concealed locking mechanism to allow for top filling.
* Unit shall have IR Sensor located on PC board housed in a water-resistant plastic housing
* Activation Lens shall allow for defined activation range to eliminate chance of false activation during hand washing
* Portion Control Knob shall allow field adjustment of desired volume of soap dispensed per hand wash.
* Comes with 6V AC adapter

Operation:

* To fill dispenser, insert tip of standard Bob-Key provided into opening of the concealed locking mechanism in the Spout
Assembly with spout body to disengage door for quick and easy top filling.
* Lid will rotate open for filling dispenser with bulk liquid hand soap only.
* Rotate door counter-clockwise to close and lock in place.
* To activate dispenser, place hand under spout near the sensor for approximately 1/2 second.
* Spout dispenses adjustable amount (adjustment range approximately .4 to 3ml) of liquid hand soap of various viscosities ranging from 100 to 19,000 cP (centipoise)

Installation:

* New installation – Ensure mounting hole is 35mm in diameter. Refer to installation instruction with mounting template link below.
* Existing/Retrofit – Ensure mounting hole is 35mm in diameter, if necessary, enlarge opening using appropriate hole saw
