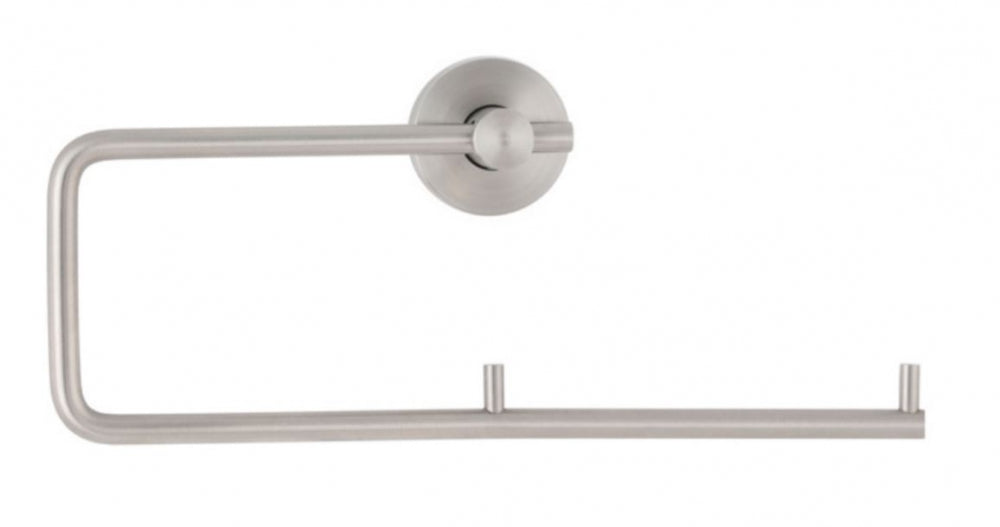

BOBRICK Cubicle B547 Double Toilet Roll Holder

Item Number: B547

Key Features:

* Threaded Mounting Flange
* Double Toilet Tissue Dispenser shall be type-304 stainless steel with satin finish.
* Toilet Tissue Dispenser shall have 19mm diameter Post.
* Dispenser bar shall be 9.5mm diameter, secured to Post with a concealed set screw allowing for right or left handed assembly.
* Retaining pin shall be 6.4mm diameter and pressed into Dispenser bar.
* Concealed mounting flange shall be 5.6mm thick stainless steel plate, 46mm outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover.
* Threaded flange cover shall be 1.4mm (17-gauge) stainless steel, 49mm diameter and shall fasten over mounting flange to conceal mounting screws.
* Post and mounting flange are to be machined as one piece
* Overall Dimensions: 270mm W x 85mm H x 35mm D

Installation:

* For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws (not furnished). For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws (not furnished), or provide 3mm (1/8") toggle bolts or expansion bolts.
* For partitions with particle-board or other solid core, secure with sheet-metal screws (not furnished), or provide through-bolts, nuts, and washers. For hollow-core metal partitions, provide solid backing into which the sheet-metal screws (not furnished) can be secured.
