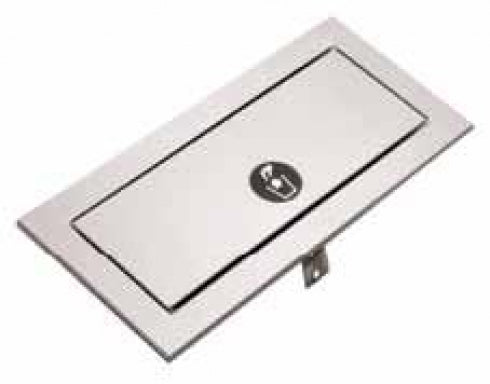

BOBRICK B527 Waste Chute Counter Top with Self Closing Door

Item Number - B527

Materials -

* Flange - Type-304, 22-gauge (0.8mm) stainless steel.
* Waste-Disposal Door - 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction.
* Self-closing door is equipped with a spring-loaded, full-length stainless steel piano-hinge.

Operation -

* Self-closing door allows convenient disposal of paper towels and waste from the top by pushing downward through the hinged opening, then shuts tightly after use.
* Waste receptacle is not included with unit.
* Waste-disposal door may be mounted in vertical surfaces of countertop also, including aprons, skirts, or front of cabinets.

Installation -

* Unit is designed for installation in countertop 114mm minimum clearance below mounting surface is required.
* Mount unit through a cutout specially ordered from countertop manufacturer or field cut.
* Dimensions of cutout are to be 11-1/4 wide x 4-1/2 high (285 x 115mm).
* Adjustable mounting tabs accommodate mounting thicknesses from 19 to 38mm.

Specification -

* Waste-disposal door for mounting in countertops shall be type-304 stainless steel with all-welded construction; exposed surfacesshall have satin finish.
* Flange shall have 1/4 (6mm) 90deg return.
* Self-closing door shall be equipped with a spring-loaded, full length stainless steel piano-hinge and an international graphic symbol.
