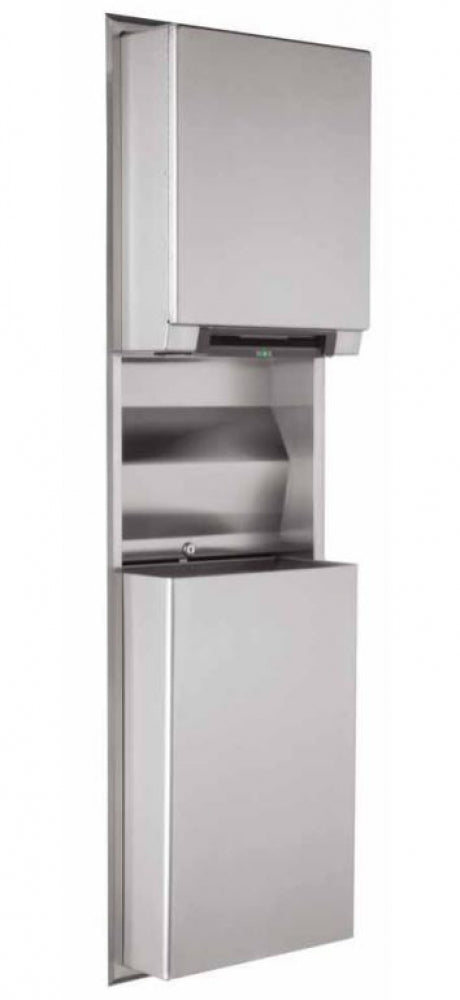

BOBRICK B3979 Auto Roll Towel Dispenser and Waste Bin 45L

Item Number:  B3979

Key Features:

* Recessed convertible automatic universal roll paper towel dispenser and waste receptacle shall be Type-304 stainless steel with welded construction
* Exposed surfaces shall have satin-finish
* Flange shall be drawn and beveled, one-piece, seamless construction.
* Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a concealed tumbler lock
* No-touch dispenser, equipped with an intuitive LED light to direct patrons to the dispense area
* Dispenser automatically dispenses towel when hands are placed under the towel opening.
* Dispenser can be powered by 4 “D” size alkaline batteries or an optional 6 volt DC power supply.
* Equipped with “Paper Saver” feature that provides a shorter second sheet with options of 25% shorter and 12.5% shorter
* LED light at the towel opening flashes green when dispenser is ready to dispense, flashes orange, indicating low battery, flashes red if not ready to dispense or in need of service
* Removable waste receptacle shall be secured to cabinet with a tumbler lock, edges hemmed for safe handling, and shall have a minimum capacity of 45.5L

Operation:

* Electronic sensor automatically dispenses towel when hands are placed under the towel opening.
* Intuitive LED light directs patrons to dispense area.
* Dispenses universal, 38 to 51mm diameter core, up to 205mm diameter, 205mm wide, nonperforated, non-proprietary paper towel rolls.
* LED light at the towel opening flashes green when dispenser is ready to dispense, flashes orange, indicating low battery, flashes red if not ready to dispense or in need of service.
* Towel length can be set to 230mm, 305mm, 380mm.
* Optional “Paper Saver” feature allows a shorter second sheet to dispense immediately after the first sheet.
* The “Paper Saver” feature has two second sheet length options: 25% shorter sheet length or 12.5% shorter sheet length.
* The battery pack power source holds 4 “D” size alkaline batteries (not furnished).
* Dispenser includes a 90mm diameter stub roll feature.
* When the stub roll is depleted, main roll automatically starts dispensing without the need to open the dispenser.
* To empty waste receptacle, unlock with key provided

Installation:

* Mount unit on wall with #8 x 1-1/4" (4.2 x 32mm) sheet-metal screws, (not furnished), at points indicated by an S
* For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheetmetal screws (not furnished).
* For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws not furnished, or provide 3mm toggle bolts or expansion bolts.
* If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between shirt and finish face of wall.
* Open battery cover at the front of the dispenser and install 4 “D” size alkaline batteries.
* Select sheet length and “Paper Saver” mode using the switches to the right of the batteries.
* Load paper towel using the instructions on the dispenser.
* Electrical supply for use with 6 volt DC power supply must be installed per applicable building code
