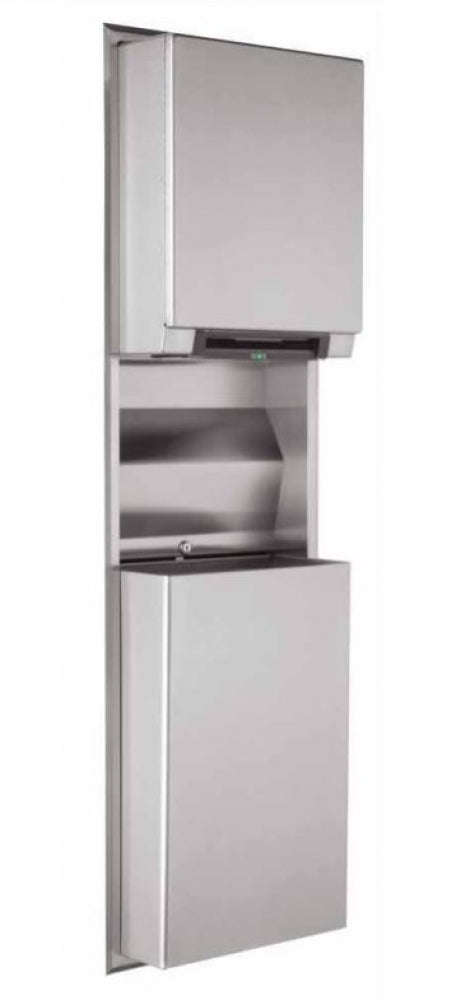

BOBRICK B39747 Auto Roll Towel Dispenser and Waste Bin 68L Recessed

Item Number:  B39747

Key Features:

* Recessed convertible automatic universal roll paper towel dispenser and waste receptacle shall be Type-304 stainless steel construction
* Exposed surfaces shall have satin-finish
* Flange shall be drawn and beveled, one-piece, seamless construction
* Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a concealed tumbler lock
* No-touch dispenser, equipped with an intuitive LED light to direct patrons to the dispense area
* Dispenses universal, 38 to 51mm diameter core, up to 205mm diameter, 205mm wide, non-perforated,
non-proprietary rolls
* Dispenser automatically dispenses towel when hands are placed under the towel opening
* Dispenser can be powered by 4 “D” size alkaline batteries or an optional 6-volt AC to DC power supply
* Equipped with “Paper Saver” feature that provides a shorter second sheet with options of 25% shorter and 12.5% shorter
* LED light at the towel opening flashes green when dispenser is ready to dispense, flashes orange, indicating low battery, flashes red of not ready to dispense or in need of service
* Automatic transfer shall dispense stub roll up to 90mm diameter before new main roll is automatically dispensed
* Removable waste receptacle shall be secured to cabinet with a tumbler lock, edges hemmed for safe handling, and shall have a minimum capacity of 68L

Installation:

* Provide framed rough wall opening 405mm H x 1390mm W
* Minimum recessed depth required to finish face of wall is 102mm
* Allow clearance for construction features that may protrude into rough wall opening from opposite wall.
* Coordinate with mechanical engineer to avoid pipes, vents, and conduits.
* If unit projects above top of wainscot, provide channel or other filler to eliminate gap between flange and finish face of wall
* Mount unit in wall opening with shims between framing and cabinet at all points indicated by an S, then secure unit with sheet-metal screws (not furnished).
* Open battery cover at the front of the dispenser and install 4 “D” size alkaline batteries.
* Select sheet length and “Paper Saver” mode using the switches to the right of the batteries
* Load paper towel using the instructions on the dispenser.
* Electrical supply for use with 6-volt AC to DC power supply must be installed per applicable building codes.
