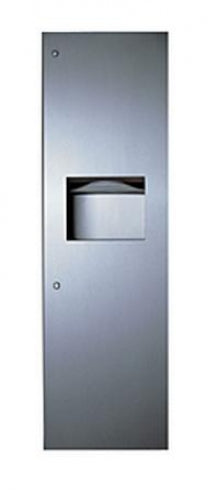

BOBRICK Trimline B39003 Paper Towel and Waste Combo 45L

Item number -  B39003 : Recessed

MATERIALS:

* Cabinet - 18-8 S, type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin finish.
* Door - 18-8 S, type-304, 18-gauge (1.2mm) stainless steel with satin finish. 9/16'' (14mm) 90deg return edges for maximum rigidity. Secured to cabinet with a concealed, full-length, stainless steel piano-hinge. Equipped with two tumbler locks keyed like other Bobrick washroom accessories.
* Paper Towel Dispenser - 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Rounded towel tray has hemmed opening to dispense paper towels without tearing.
* Capacity: 600 C-fold, 800 multifold, or 1100 singlefold paper towels.
* Waste Container - Removable, leakproof, rigid molded plastic. Capacity: 12-gal. (45.4-L).

OPERATION:

* Paper towel dispenser adjusts to accommodate C-fold, multifold, or singlefold paper towels by repositioning built-in adapter tabs in one of six slots. No additional towel trays or adapters required. Waste receptacle is serviced by opening door and removing waste container.

SPECIFICATION:

* Recessed paper towel dispenser and waste receptacle shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be 18 gauge (1.2mm); have 9/16'' (14mm) 90deg return edges; be secured to cabinet with a concealed, full-length, stainless steel piano-hinge; and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Paper towel dispenser shall be equipped with a six-position adapter that is adjustable to dispense 600 C-fold, 800 multifold, or 1100 singlefold paper towels. Waste receptacle shall be furnished with a removable, leakproof, rigid molded plastic waste-container with a minimum capacity of 12-gal. (45.4-L). Manufacturer's service and parts manual shall be provided to the building owner/manager upon request by the manufacturer.
