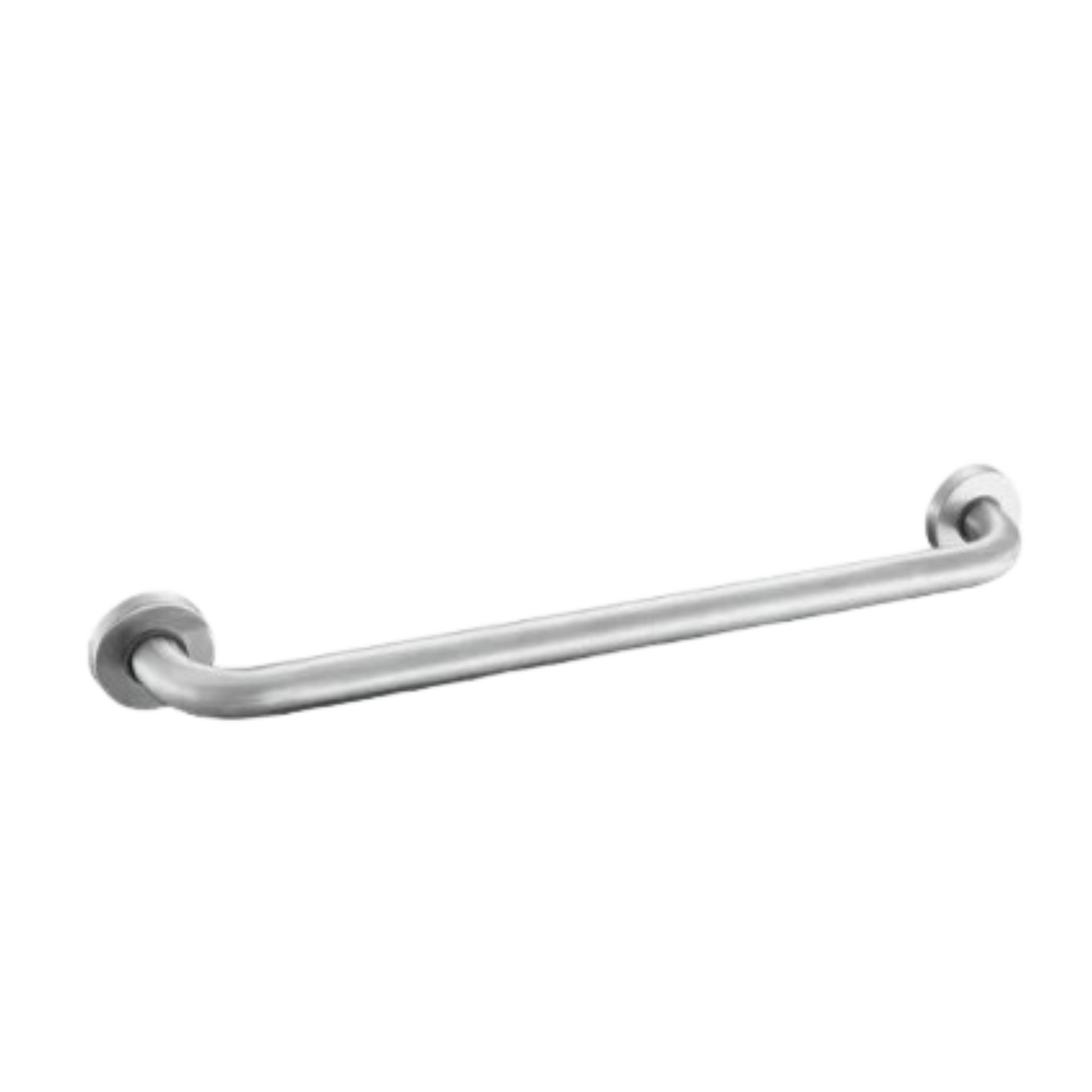

BEST BUY Grab Rail with 38mm Diameter

Item Number - BBR-017

Key Features -

* Straight grab rail
* 38mm diameter
* Concealed fixing
* Satin finish stainless steel
* All dimensions centre to centre

Product Data -

* Overall Dimensions - 400mm L x 38mm Diameter
* Finish - Satin finish stainless steel

Construction -

* Flanges: Fabricated of type 304 (18-8), 80mm dia. 13 gauge stainless steel.
* Escutcheons: Fabricated of type 304 (18-8), 22 gauge stainless steel. One-piece drawn construction with exposed surfaces in architectural satin finish. Snap over flanges to conceal mounting screws.
* Tubing: Fabricated of type 304 (18-8), 38mm (1-1/2) O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. Bent ends of tubing pass through the flanges and are heliarc welded into a single structural unit for maximum strength. Intermediate supports are contour cut and joined by heliarc welding to form an integral part of the grab rail. All welds ground and polished to blend. Mandrel bending process maintains uniform bar diameter.
* Strength: When properly mounted, all Bradley heavy duty grab rail systems meet or exceed the requirements of Australian Standard AS1428.1(2,3), of ANSI Standard A117.1, the ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG) and the Uniform Federal Accessibility Standard (UFAS).

* Installation: Secure to wall where adequate in-wall backing exists. Use grab rail as template to locate mounting holes. Drill holes and set anchors as appropriate. Mount grab rail and secure mounting screws. Snap escutcheons into place.

Guide Specification -
* Grab rail shall be fabricated of type 304 satin finish stainless steel with concealed mounting flanges in sizes and configurations as indicated.
